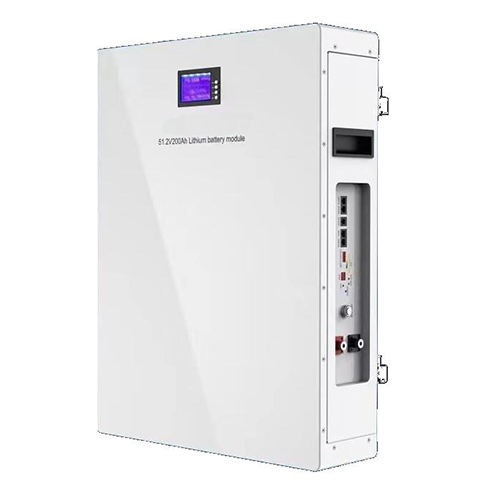

LiFePO4
Item Number: SL-48V-200Ah
| Capacity | 200AH/10.24KW |
|---|---|
| Cycles | 4000 |
| Shell material | Q235 |
Contact Now
- Specifications
- Function
- Application
- Features
- Downloads
| Dimensions (mm) | 695*533*175 |
| Terminal | M6 |
| Optional | LCD display, aerial plug, communication cable, manual |
| Rated power | 1024W |
| Working voltage | 51.2V |
| Maximum charging voltage (V) | 57.6 |
| Discharge cut-off voltage (V) | 41.6 |
| Working current | 100A |
| Charging time | 0.5C 2h |
| Use time | 1C 1h |
The lithium battery protection board has five functions of overcharge, over-discharge, over-current, over-temperature, and short-circuit protection, supports multiple batteries in parallel, increases system capacity, and has LED status indicators and alarm indicators
-
home energy storage
With intelligent monitoring, remote measurement, remote communication, RS485 remote control and other functions, with LCD display to display detailed battery parameters, matching the mainstream inverters in the market
-
Home energy storage
-
Intelligent control system
The 5th generation fully intelligent battery control system is independently developed, with six functions of overcharge, overdischarge, overcurrent, reverse connection, overtemperature and short circuit protection.
-
Deep charge and discharge
100% DOD.
-
Cycle life
Lithium battery has a higher energy density and a longer cycle life, with an average of 300-500 times for lead-acid batteries and more than 2000 times for lithium batteries.
-
Mass and volume
In the case of the same capacity, lead-acid batteries are heavier and larger than lithium batteries.
-
Battery capacity
Compared with lead-acid batteries, the average voltage of lithium batteries is higher, and its energy density is high. In other words, the capacity of lithium batteries is larger for batteries of the same size.
-
Warranty period
The warranty period of lead-acid batteries is generally 1 year, while the warranty period of lithium batteries is longer and can be guaranteed for 2 years.
-
Lithium battery advantages
Compared with lead-acid batteries, lithium batteries are smaller, lighter, more portable, and have a relatively longer lifespan. In addition, lithium batteries have greater energy, can provide greater current, and are more adaptable to high and low temperatures, less affected by temperature, and more environmentally friendly.
-
