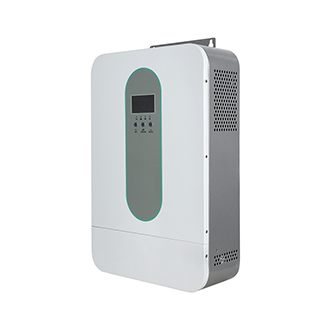

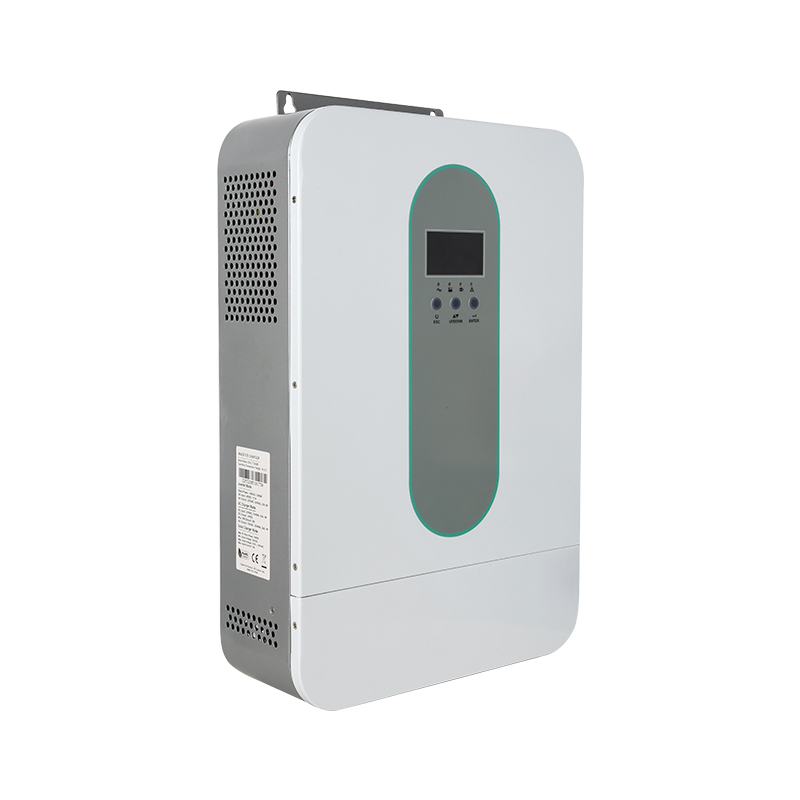

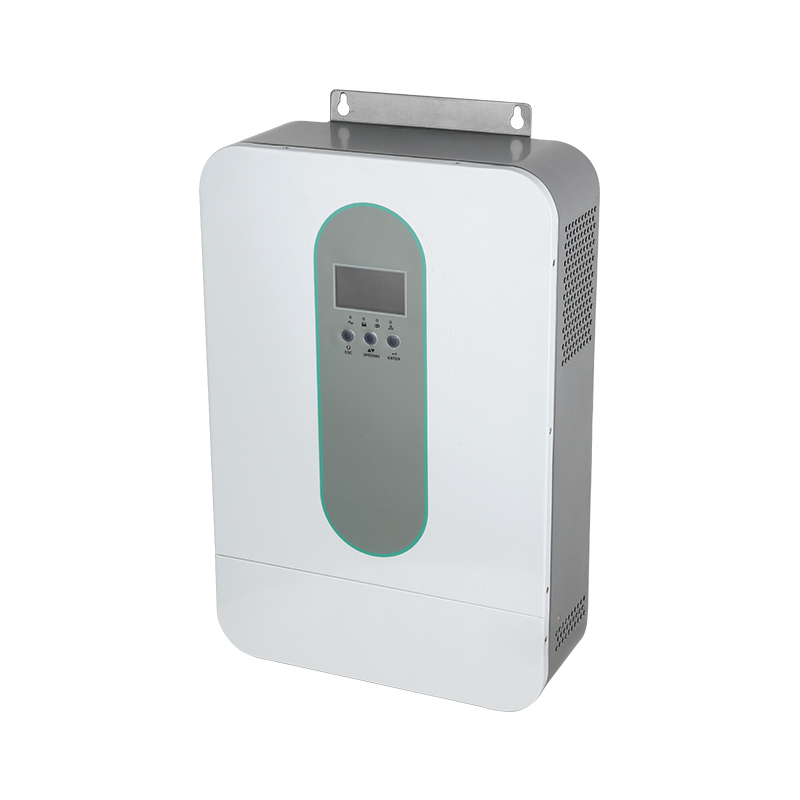

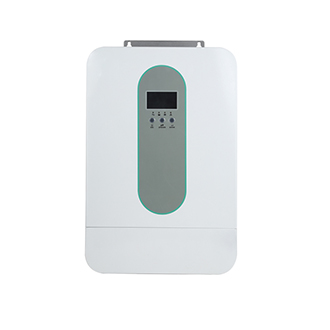

3kw hybrid power inverter
Item Number: ISGC-T 3024
| Power | 3000W |
|---|---|
| PV Charging Mode | MPPT |
| Peak Power | 6000W |
Contact Now
- Specifications
- Features
- Introduction
- Application
- Downloads
| Model |
ISGC-T 3024
|
|
| input | Input Sources | L+N+PE |
| Rated Input Voltage | 208/220/230/240VAC | |
| Voltage Range | 154-264VAC+3V(APP Mode)185-264VAC+3V(UPS Mode) | |
| Freqency | 50Hz/60Hz(Auto Adaptive) | |
| Output | Rated Capacity | 3000W |
| Output Voltage | 208/220/230/240VAC+5% | |
| Output Frequency | 50/60Hz+0.1% | |
| Waveform | Pure Sine Wave | |
| Transfer Time | Computers(UPS Mode)10ms , Appliance(APP Mode)20ms | |
| Peak Power | 6000VA | |
| Over Load Ability |
Battery Mode: 1min@ 102%~110% Load 10s@ 110%~130% Load 3s@130%~ 150% Load 200ms@> 150% Load |
|
|
Peak Efficiency (battery Mode) |
>94% | |
| Battery | Battery Votage | 24Vdc |
| Constant Charging Voltage(Adjustable) | 28.2Vdc | |
| Floate Charging Voltage(Adjustable) | 27Vdc | |
| Chargers | PV Charging Mode | MPPT |
| MAX. PV Input Power | 1500W | |
| MPPT Tracking Range | 30~115Vdc | |
| MAX.PV Input Voltage | 145Vdc | |
| Best open circuit voltage range | 70-110V | |
| Best voltage | 60-90V | |
| MAX.PV Charging Current | 60A | |
| MAX.AC Charging Current | 60A | |
| MAX.Charging Current | 120A | |
| Display | LCD Display | Display Running Mode/Loads/Input/Output etc. |
| Interface | RS232 | 5PIN/Pitch2.0mm，Baud Rate2400 |
| Communication Port | 2x 5PIN/Pitch2.54mm,Lithium Lattery BMS Communication Card,WifiCard,DryContact | |
| Parallel Connect Interface | Without Parallel Connect | |
| Environments | Operating Temperature | 0~40°C |
| Humidity | 20%~95%(Non-condensing) | |
| Storage Temperature | -15~60C | |
| Altitude | Altiude Not Over 1000m,Derating over 1000m, Max 400m，Refer to IEC62040 | |
| Noise | ≤50db | |
Product Features
-
Pure sine wave inverter
-
Configurable input voltage range for home appliances and personal computers via LCD setting
-
Configurable battery charging current based on applications via LCD setting
-
Configurable AC/Solar Charger priority via LCD setting
-
Compatible to mains voltage or generator power
-
Auto restart while AC is recovering
-
Overload/Over temperature/short circuit protection
-
Smart battery charger design for optimized battery performance
-
Cold start function

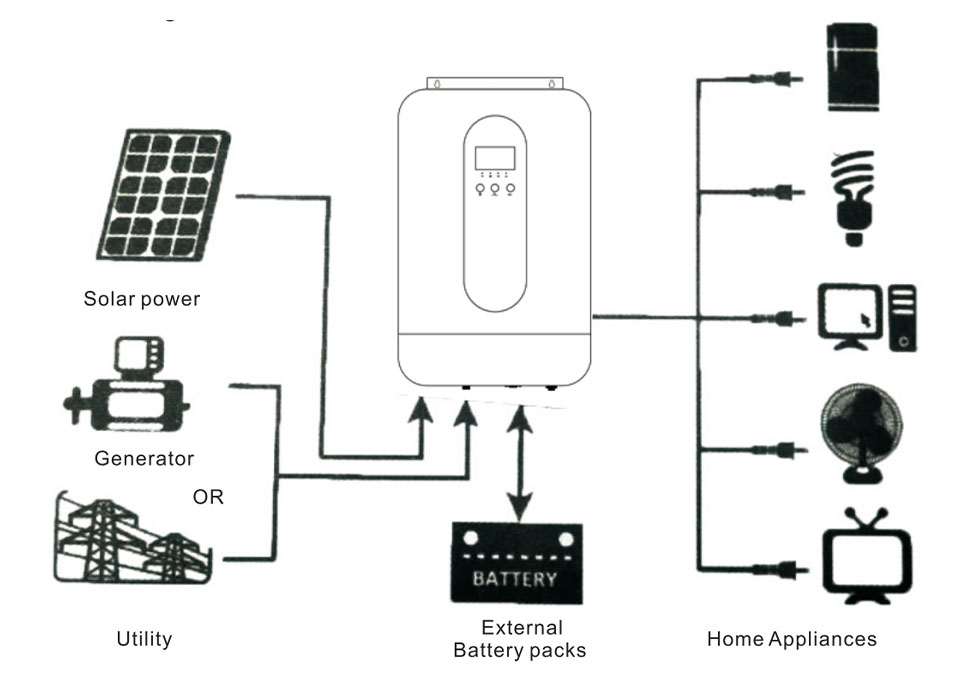

Basic System Architecture
The following illustration shows basic application for this inverter/charger. It also includes following devices to have a complete running system:
- • Generator or Utility
- • PV modules
Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or environment,including motor-type appliances such as tube light, fan, refrigerator and air conditioner.

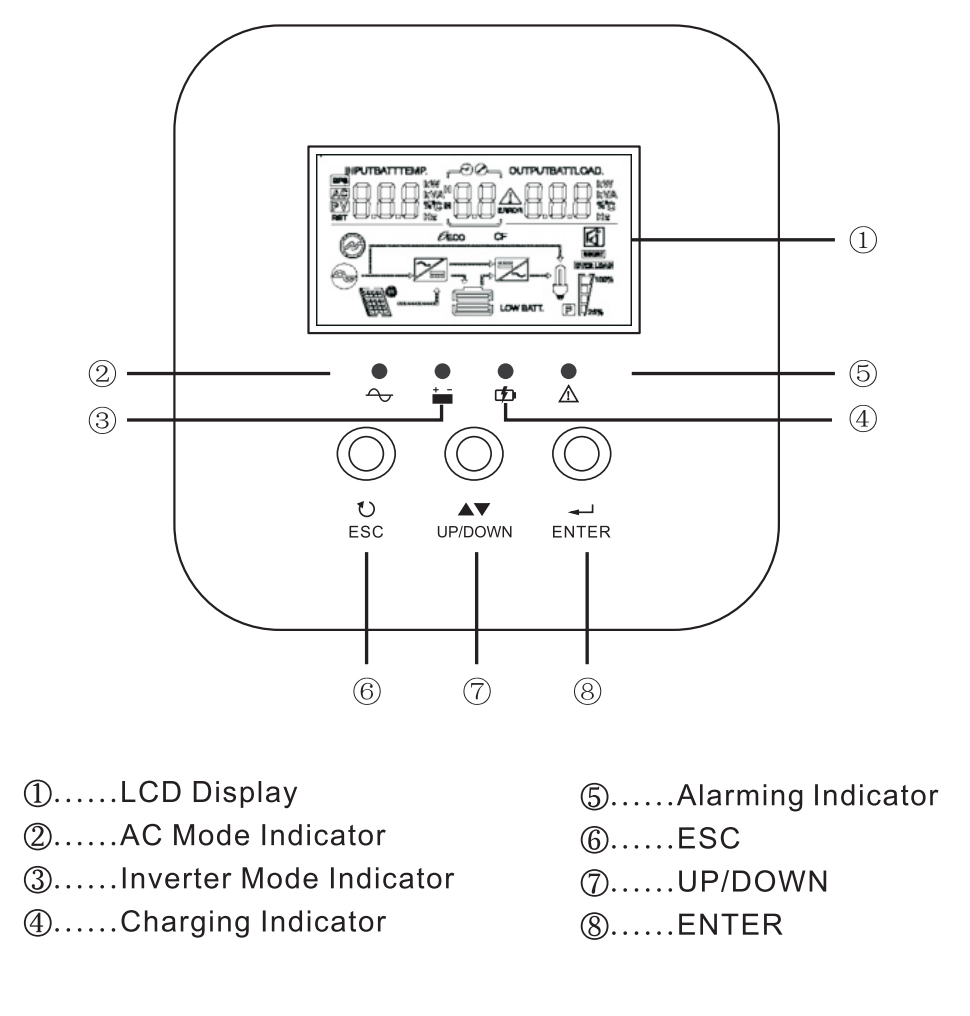

LCD Screen

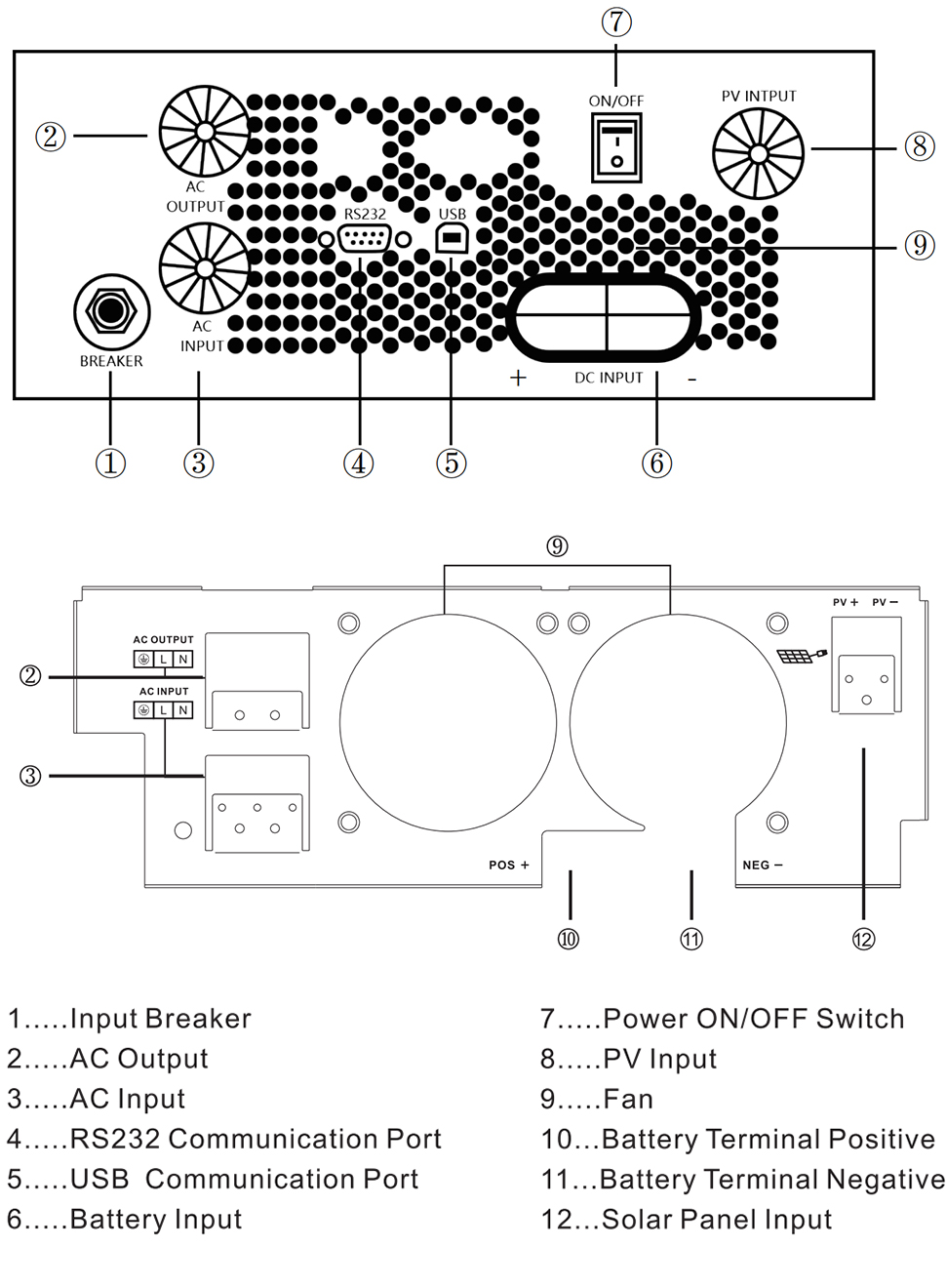

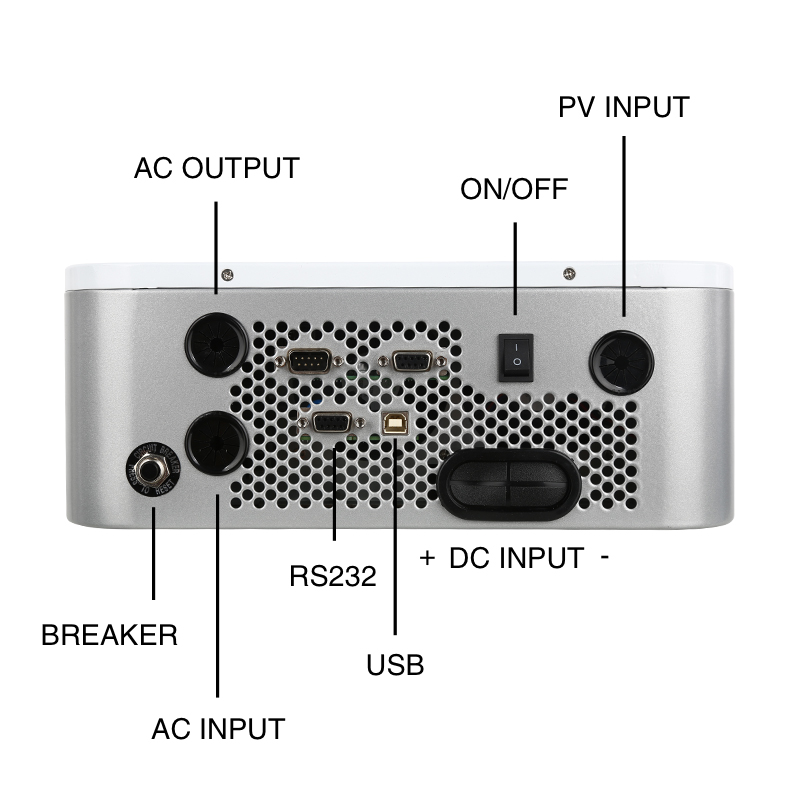

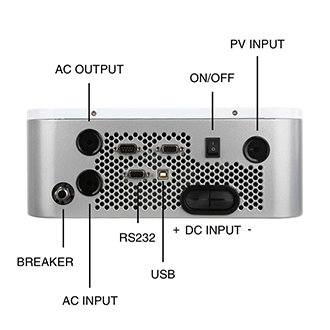

Back Panel
Application
-
Home energy storage
-
